View MoreResistor Array (CN, CNA Series)
0201X2(FLAT) / 0201X4(FLAT) / 0402X4 / 0603X4 / 0402X4(CONCAVE) / 0603X4(CONCAVE)
Thick Film Array Chip Resistor - CN Series

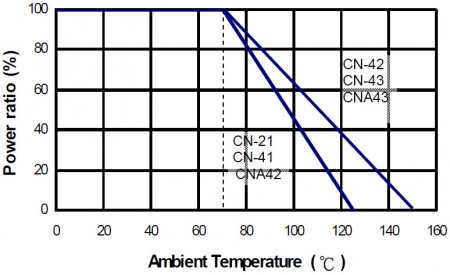

Derating Curve
Resistor array for various size for 8P4R and 4R2R. Convex and Concave available.
Scope
- This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material.
Features
- Small size and light weight.
- Reduction of assembly costs and matching with placement machines.
- Reliability, high quality.
- Suitable for IR reflow soldering.
Applications
- Entertainment
- Computer & Related Products
- Communication Equipment
- Power Equipment
- Measuring Instrument
Construction
Part Numbering
Standard Electrical Specifications
| Item Type |
Power Ratingat 70°C Jumper Rated Current |
Operating Temp. Range |
Max. Operating Voltage |
Max. Overload Voltage |
Number of Resistors |
Resistance Range | TCR (PPM/°C) |
|
|---|---|---|---|---|---|---|---|---|
| ±1% | ±5% | |||||||
| CN-21 | 1/32W | -55 ~ +125°C | 12.5V | 25V | 2 | - | 3Ω – 9.1Ω | ±300 |
| 10Ω - 1MΩ | ±200 | |||||||
| Jumper: 0.5A | 0Ω (<50mΩ) | - | ||||||
| CN-41 | 1/32W | -55 ~ +125°C | 12.5V | 25V | 4 | 10Ω - 1MΩ | ±200 | |
| Jumper: 0.5A | 0Ω (<50mΩ) | - | ||||||
| CN-42 | 1/16W | -55 ~ +155°C | 25V | 50V | 4 | 10Ω - 1MΩ | 1Ω - 1MΩ | ±200 |
| Jumper: 1A | 0Ω (<50mΩ) | - | ||||||
| CN-43 | 1/10W | -55 ~ +155°C | 50V | 100V | 4 | 10Ω - 1MΩ | 1Ω - 1MΩ | ±200 |
| Jumper: 1A | 0Ω (<50mΩ) | - | ||||||
| CNA42 | 1/16W | -55 ~ +125°C | 50V | 100V | 4 | 10Ω - 1MΩ | ±200 | |
| Jumper: 1A | 0Ω (<50mΩ) | - | ||||||
| CNA43 | 1/16W | -55 ~ +155°C | 50V | 100V | 4 | 10Ω - 1MΩ | ±200 | |
| Jumper: 1A | 0Ω (<50mΩ) | - | ||||||
Operating Voltage=√(P*R) or Max. Operating Voltage listed above, whichever is lower.
Overload Voltage=2.5*√(P*R) or Max. Overload Voltage listed above, whichever is lower.
☑Helisto is capable of manufacturing the optional spec based on customer's requirement.
